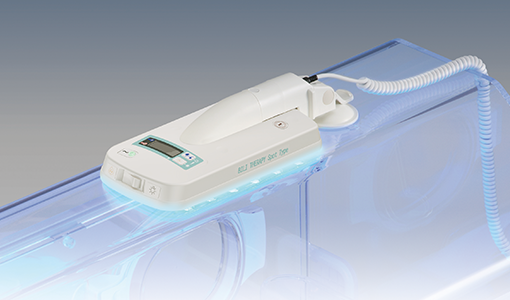

ATOM BILI-THERAPY Spot Type

Compact and Effective LED Phototherapy for Neonatal Jaundice

The ATOM BILI-THERAPY Spot Type is a versatile, space-saving LED phototherapy unit designed to deliver targeted and efficient treatment for neonatal jaundice. With adjustable intensity settings, multiple mounting options, and dual-functionality, it is an ideal choice for hospitals and neonatal care units looking for an effective and adaptable phototherapy solution.

Optimized Phototherapy Treatment

High-Intensity Blue LED Light: Provides consistent and effective bilirubin breakdown for fast neonatal jaundice treatment.
Adjustable Irradiation Levels: Switch between high and low intensities to customize treatment based on patient needs.

Space-Saving & Flexible Design

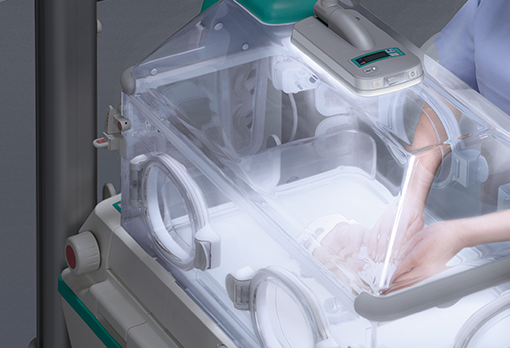

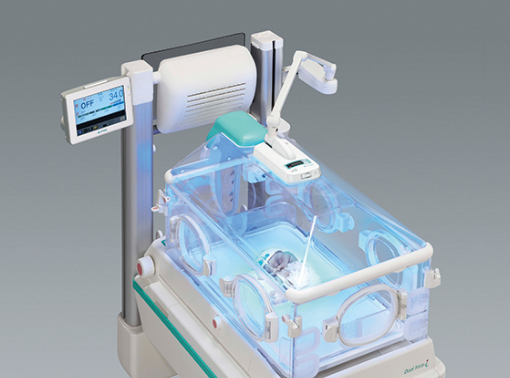

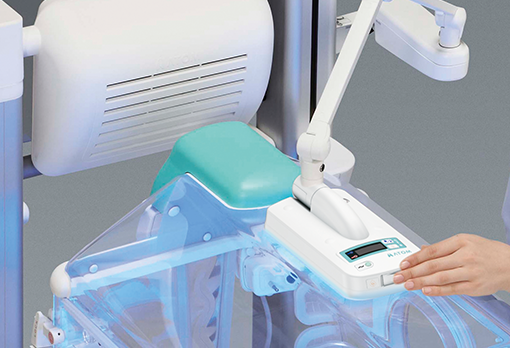

Multiple Mounting Options: Can be mounted on an F-Rail, stand, or arm, allowing optimal positioning while preserving space around incubators or warmers.
Compact & Lightweight Build: Designed for ease of use and maneuverability within neonatal care settings.

Dual-Functionality for Efficiency

Examination Lamp Mode: A single button switch converts the unit to a white LED exam light, allowing infant monitoring without additional equipment.

Technical Specifications

Power Voltage: AC100V-240V
Power Consumption: 30VA
Light Source: Blue LEDs
Dimensions: Irradiation Head: W125 × D330 × H80mm, Power Source Unit: Mount Type: W180 × D340 × H110mm, Arm Type: W1000 × D130 × H450mm, Stand Type: W450 × D710 × H1900mm
Weight: Irradiation Head: Approx. 0.8kg, Power Source Unit: Mount Type: Approx. 0.9kg, Arm Type: Approx. 2.2kg, Stand Type: Approx. 12kg

The ATOM BILI-THERAPY Spot Type is a smart, efficient, and highly adaptable neonatal phototherapy unit, offering reliable jaundice treatment while optimizing workflow in neonatal care settings.
